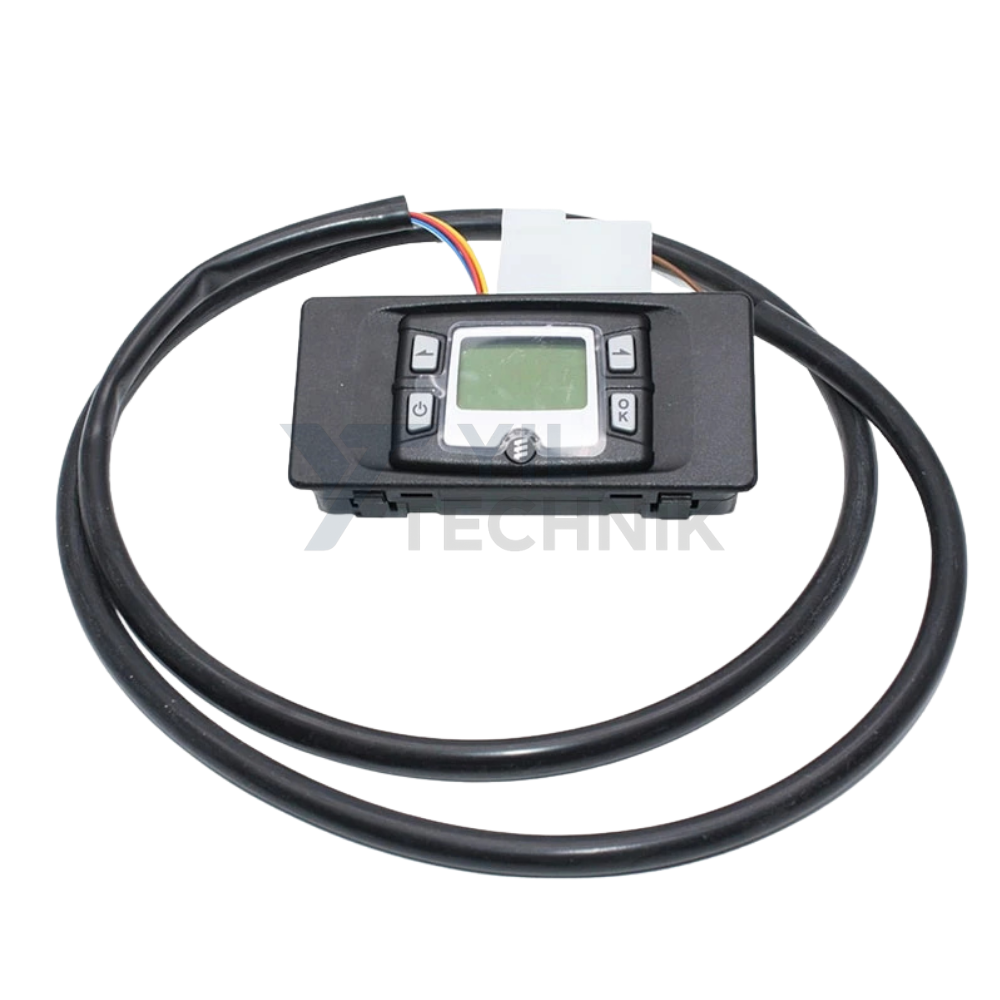

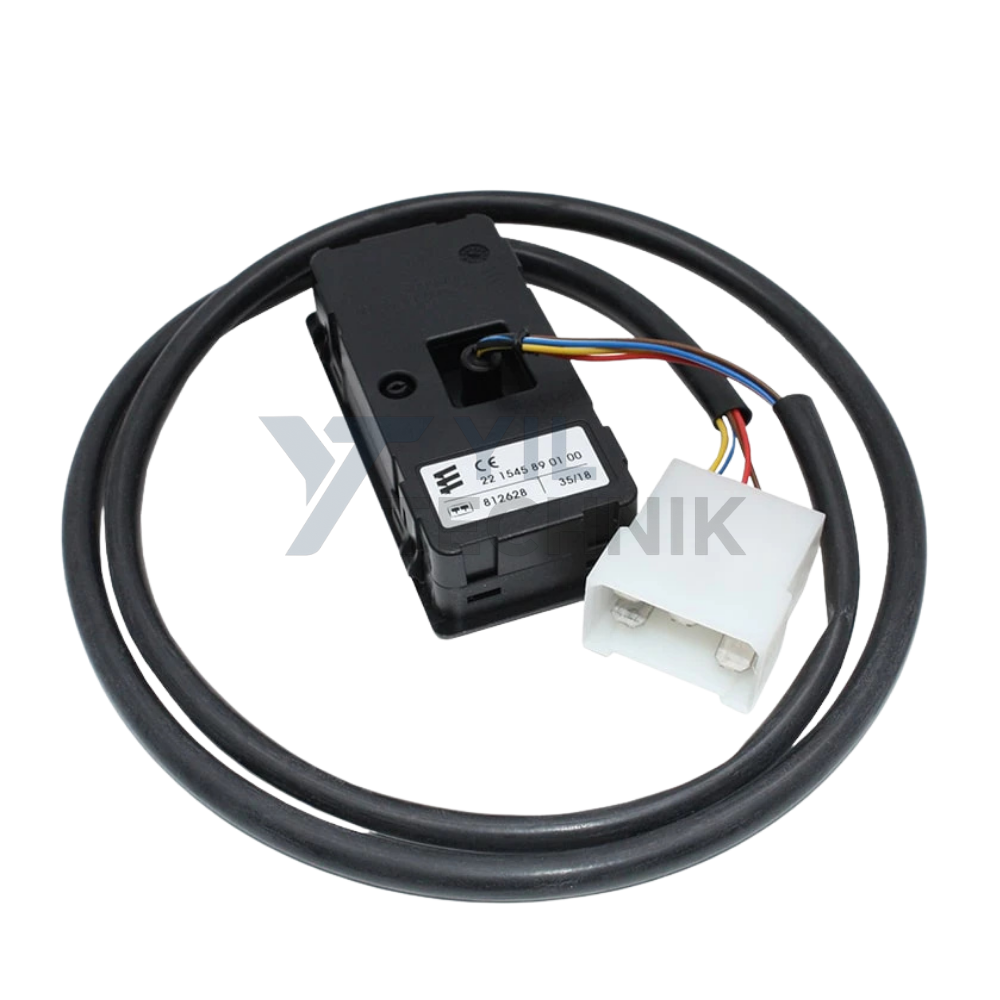

Eberspacher / Espar Diagnostic Tool
The diagnostic unit is solely used to read, display and delete faults stored in the heater's electronic control box (ECU). The electronic control box can store up to 5 faults (exception: heater D 3 W Z).
Eberspacher / Espar Part Number:
- 221545890000
- 22.1545.89.00.00 / 22.1545.89.0000
- 22 1545 89 00 00 / 22 1545 89 0000
Usability of the diagnostic unit:
The diagnostic unit can be used together with the corresponding adapter cable for the following heaters:
Airtronic / Airtronic M / Airtronic L - Cable Part No: 22 1000 31 86 00
B / D 1 L Cc, B / D 3 L Cc, B / D 3 L Pc - Cable Part No: 22 1000 30 69 00
B / D 1 L C, B / D 3 L C, B / D 3 L P, B / D 5 L C / 8 L – No adapter cable required
Hydronic - Cable Part No: 22 1000 31 63 00
Hydronic II / Hydronic II C - Cable Part No: 22 1000 33 78 00
D 9 W / Hydronic - Cable Part No: 10 22 1000 31 83 00
Hydronic 10, control box with integrated connector - Cable Part No: 22 1000 32 52 00
Hydronic M II - Cable Part No: 22 1000 33 44 00
Hydronic 16 / 24 / 30 / 35 - Cable Part No: 22 1000 31 66 00
